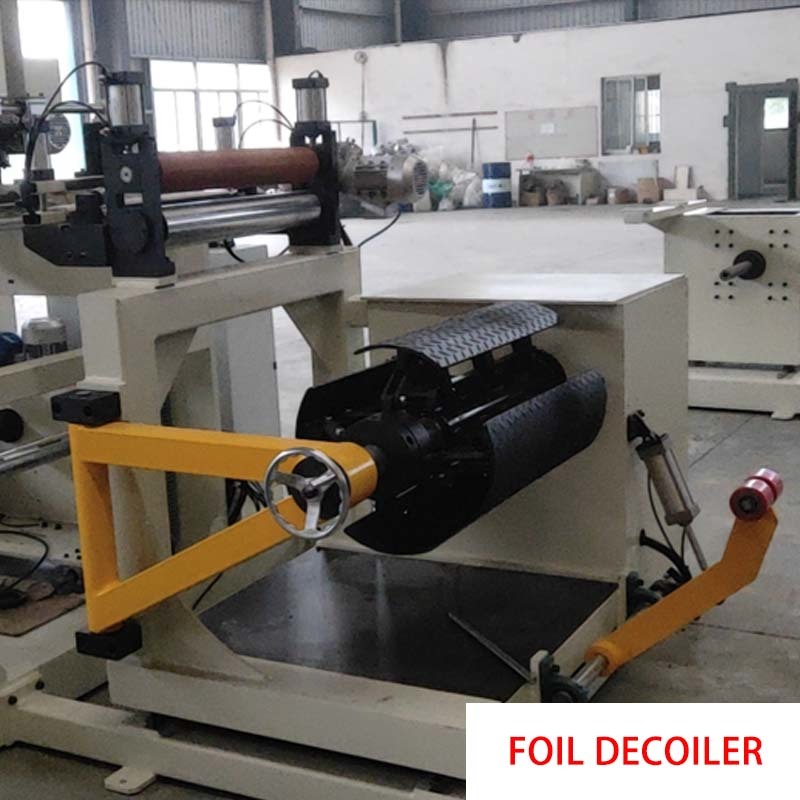

Description of transformer foil winding machine BRJ700

Transformer foil winding machine BRJ700 is a professional conductor foil winding machine. This kind of foil winding machine can wind both copper foil and aluminium foil to make transformer foil coils and other similar products. With one foil decoiler, the transformer foil winding machine can wind one layer of foil. The transformer foil winding machine is also provided two insulation decoilers, which makes the foil winding machine can wind one or two layers of insulation paper. With TIG welding unit, the transformer foil winding machine can weld foil with bus bar together. The transformer foil winding machine features slow starting, smooth running, big torque and easy operation.

Quick detail of transformer foil winding machine BRJ700

Winding foil with maximum width 700mm
Winding both copper foil and aluminium foil
Conductor foil with ID 500mm and OD 1000mm maximum
TIG welding unit
Pressing roller
Customized color

Technical parameters of transformer foil winding machine BRJ700

Typical standard specifications of transformer foil winding machine BRJ700 are shown below and the transformer foil winding machine can also be manufactured as requested.

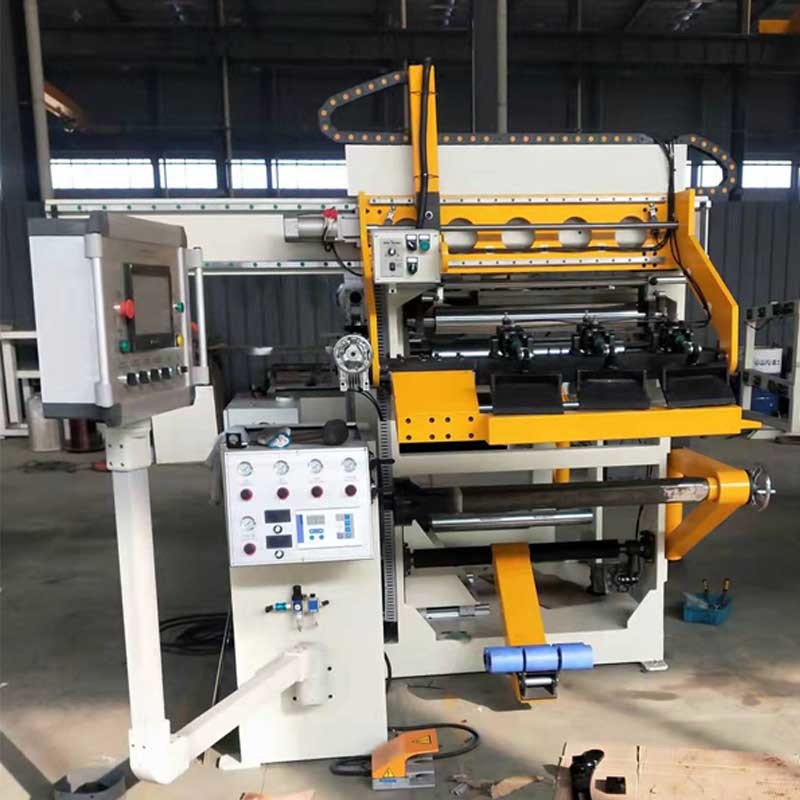

Fig 1: Transformer foil winding machine BRJ700's front view


Fig 2 :Transformer foil winding machine BRJ700's side view
