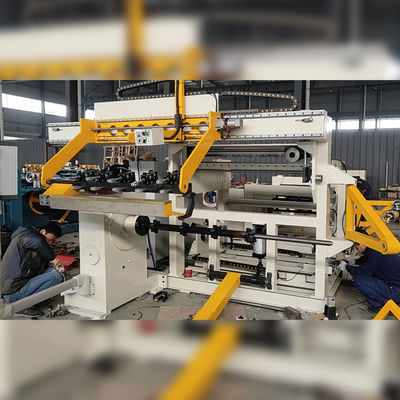

Heavy Duty Copper Foil Winding Machine with Two Foil Decoilers Two Insulation Decoilers and 12 Months Warranty

Heavy Duty Winder Machine Transformer Copper Foil Winding Machine

Description of copper foil winding machine BRJ1200-2

Copper foil winding machine BRJ1200-2 is a professional winding machine, which is mainly used to winding cast resin transformer coils and other similar products. With two foil decoilers and two insulation decoilers, the foil winding machine can handle one or two layers of foil and one or two layers of insulation paper. The foil winding machine is provided with photoelectric sensing for correcting the foil’s position when the foil is wound. With PLC and HMI, the foil winding machine is with high automation and easy operation.

Main components of copper foil winding machine BRJ1200-2

·  Main frame

·  Winding unit

·  Foil decoiler

·  Insulation decoiler

·  End-fill strip feeder

·  Cleaning system

·  Cutting system

·  Edge alignment system

·  Automatic welding unit

·  Electronic control system

Technical parameters of copper foil winding machine BRJ1200-2

Typical standard specifications of copper foil winding machine BRJ1200-2 are shown below and the copper foil winding machine can also be manufactured as requested.

Fig 1: Copper foil winding machine BRJ1200-2's side view


Fig 2: Copper foil winding machine BRJ1200-2's back view
