Automatic Copper Foil Winding Machine for Reactor Coils with 0.2-2.0mm Cu Foil and 1000KG Max Coil Weight

Automatic Reactor Coil Winder Machine Copper Foil Winding Machine

Quick details of copper foil winding machine BRJ800-2-2

l Two chucks

l Foil material ID 500mm

l Foil material OD 1000mm, maximum

l Maximum winding speed 24rpm

l Winding power 11kw

l TIG welding

Description of copper foil winding machine BRJ800-2-2

Copper foil winding machine BRJ800-2-2 is a professional winder equipment, which is mainly used to wind reactor coils and other similar products. With two chucks, the copper foil winding machine can clamp the core and wind the foil on the core directly.The copper foil winding machine is provided with two foil decoilers, which makes the foil winding machine can handle one or two layers of foil at the same time. Moreover, the foil winding machine can also handle one or two layers of insulation paper with two insulation decoilers. The copper foil winding machine features slow starting, smooth running, high torque and easy operation, etc.

Technical parameters of copper foil winding machine BRJ800-2-2

Typical standard specifications of copper foil winding machine BRJ800-2-2 are shown below and the copper foil winding machine can also be manufactured as requested.

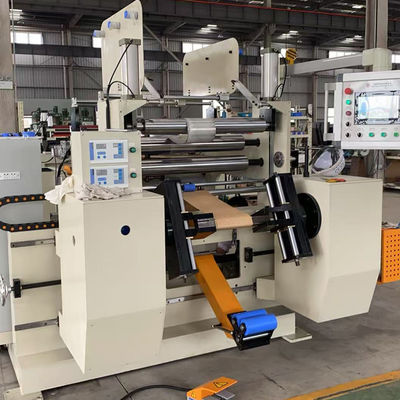

Fig 1: Copper foil winding machine BRJ800-2-2's front view

Fig 2: Copper foil winding machine BRJ800-2-2's back view
